Radio Shack Special FM Tuner.
After a few AM radios I wanted to
build an FM radio. I found this link and
gave it a whirl. No Joke, this Radio performs excellent!
I
can tune at least 16 different stations in my area. All parts
can
be bought at your local Radio Shack and are inexpensive. The

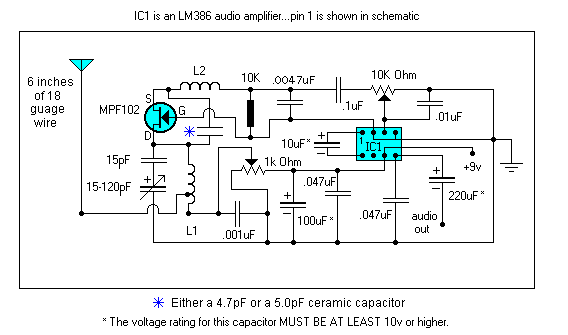

funnest part was dipping your own copper board to make the schematic.

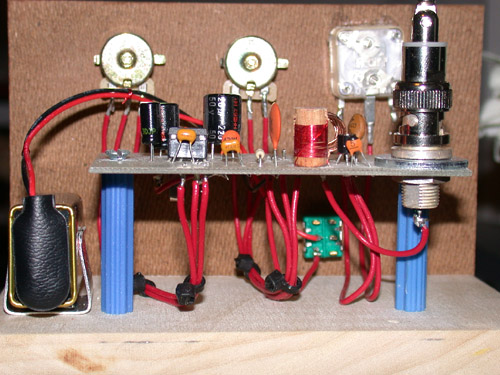

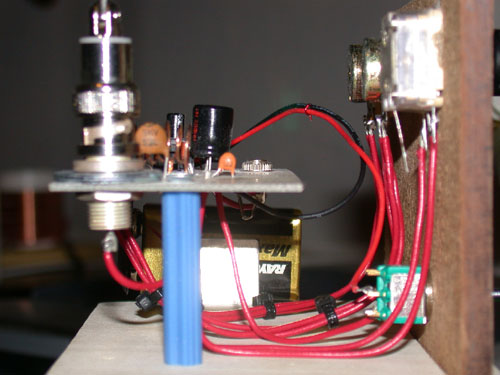

After assembly, I decided to switch the trimmer type
potentiometers with the type you see here. One is for volume
and
one is for Gain. The capacitor tunes it and a 9v battery will
run
this little gem for weeks.
|
|
